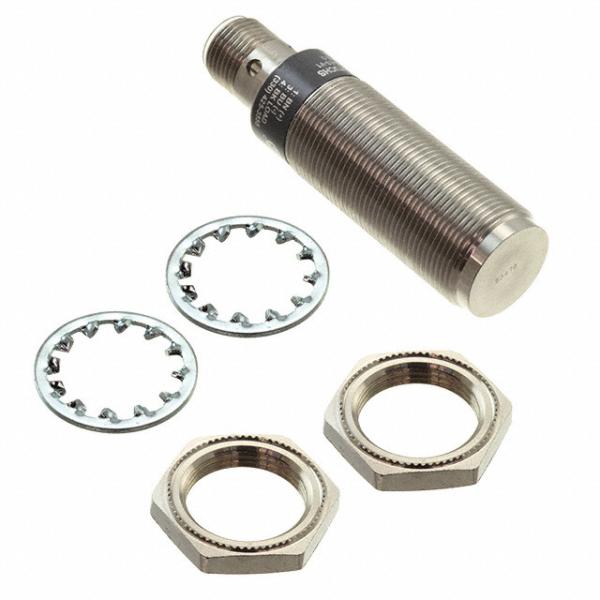

    PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

    Ask Lasest Price
    Brand Name : PF
    Model Number : NMB10-18GH50-E2-V1
    Certification : ATEX
    Price : USD98.00/PC
    Payment Terms : Alipay
    Supply Ability : 100pcs per month
    Delivery Time : 12-14 weeks
    • Product Details
    • Company Profile

    PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

    PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive sensor


    General specifications
    Switching functionNormally open (NO)
    Output typePNP
    Rated operating distance10 mm
    Installationflush in mild steel
    Output polarityDC
    Assured operating distance0 ... 8.1 mm
    Reduction factor rAl0.4
    Reduction factor rCu0.25
    Reduction factor r3040.5 (0.9 of material thickness 2 mm)
    Reduction factor rSt371
    Output type3-wire
    Nominal ratings
    Installation conditions
    A0 mm
    B16 mm
    C30 mm
    F60 mm
    Operating voltage10 ... 30 V
    Switching frequency0 ... 300 Hz
    Hysteresis3 ... 15 typ. 5 %
    Reverse polarity protectionyes
    Short-circuit protectionyes
    Voltage drop≤ 2 V
    Operating current0 ... 200 mA
    Off-state current≤ 0.1 mA
    No-load supply current≤ 10 mA
    Time delay before availability≤ 40 ms
    Switching state indicatorLED, yellow
    Limit data
    Operating pressure statically60 bar (870.2 psi) max.
    Functional safety related parameters
    MTTFd655 a
    Mission Time (TM)20 a
    Diagnostic Coverage (DC)0 %
    Compliance with standards and directives
    Standard conformity
    StandardsEN IEC 60947-5-2
    Approvals and certificates
    UL approvalcULus Listed, General Purpose
    CCC approvalCCC approval / marking not required for products rated ≤36 V
    Ambient conditions
    Ambient temperature-25 ... 85 °C (-13 ... 185 °F)
    Mechanical specifications
    Connection typeConnector plug M12 x 1 , 4-pin
    Housing materialStainless steel 1.4435 / AISI 316L
    Sensing faceStainless steel 1.4435 / AISI 316L
    Degree of protectionIP68 / IP69K
    Mass24 g
    Dimensions
    Length63.5 mm
    Diameter18 mm
    General information
    Assembly dimensionsx: 18 mm
    y: ≥ 4 mm
